Visual User Interface for Document Retrieval
Utilizing Spatial Relationships
among Document Vectors

Masahiro Watanabe Masatoshi Yoshikawa

Graduate School of Information Science
Nara Institute of Science and Technology

8916-5 Takayama, Ikoma, Nara 630-01, Japan
phone: +81 (743)72-5331
fax: +81 (743)72-5399
e-mail: {masah-w, yosikawa}@is.aist-nara.ac.jp

Abstract

With the growth of the current of information such as documents, the method of selecting relevant one is more and more required. There are several ways to answer to this requirement. Visualizing information seemed to be a promising method. In this paper, we propose our user interface and algorithms. In the approach, a document-term matrix generated from a document set is decomposed usig the singular value decomposition (SVD) method. The document information is visualized on a 2-D space using the result of SVD. Users specify retrieval conditions by indicating a position on the plane. With this approach, users can easily specify retrieval conditions which will be complicated when expressed in Boolean expressions of keywords. We heve built a prototype system, and did experiments using a small set of documents.

Keywords:

Digital Library, Information Retrieval, Information Filtering, Visualisation

1. Introduction

Recently, much attention has been paid to visual user interface for document retrieval. This is mainly because such user interface is deemed to be a promising method to overcome the limitations of systems using keyword interface. Past research on this topic includes VIBE[6], PITS[1] and SearchSpace[7].
In this paper, we propose a new approach to visual user interface for document retrieval. Our approach has the following features:
1.
Multi-dimensional document vectors are projected onto 2-D planes on which documents are visualized and retrieved based on their spatial interrelationships. Users can specify queries in visual and intuitive manner. Specification of such relationships among documents would be very complicated if Boolean combinations of keywords were used.

2.
Unlike many other systems, users can specify 2-D planes on which documents are placed. To specify horizontal and vertical axes of planes, users give two pairs of documents which are familiar to them. Intuitively, the line connecting the two document vectors in the first (and the second, respectively) pair is horizontal (and vertical, respectively) axis. Therefore, users can view and retrieve documents from their own point of view.

3.
So far, much work have been done on information retrieval using vector model, in which objects near to the specified query vector are retrieved. In these methods, only distance information in vector space is used. Since our method employs LSI[2, 5] and hence is based on orthogonal space, our method uses not only distance but also direction information. From practical point of view, this is only effective when using visual user interface.

4.
The conversion from multi-dimensional to 2-D vectors is based on FastMap[4], and is very fast.
In this paper, we present our user interface and its generative algorithms. We have built a prototype system, and did experiments using a small set of documents.

2. Visual Query Interface

In this section, the construction process of the 2-D interface (Figure 1) will be described. We assume that the interface is 2-D, because it seems difficult for human to grasp or specify object space using more than 2 dimensions.
Users specify the picture of object feature space that they have in their mind. They arrange known objects as two pairs of "yardstick objects" on the 2-D interface (Figure1). The horizontal axis will be generated based on one of the two pairs of the "yardstick objects", and the vertical axis will be generated based on the other. The user interface is composed by these two axes. The users specify the target query object on the same 2-D interface, and then the system interprets the spatial interrelationships between the query object and the "yardstick objects" as search conditions. So, it is desirable that two yardstick objects in a pair are poles apart from each other. The objects in the neighbourhood of the query object are retrieved.
The method we propose is closely related to FastMap algorithm [4]. The goal of the FastMap algorithm is to map n-D vector space objects into points in some k-D (k < n) space so that the distances between the objects are preserved. To solve the problem of visualizing and indexing, the FastMap algorithm and our method are much faster than an older method from pattern recognition, namely, Multi-Dimensional Scaling[3]. The difference between FastMap algorithm and our method is the way to choose the two ends of the line segment, on which object vectors are projected.

2.1. Algorithm

The heart of the proposed method is to project the objects on a `line' selected by the user. The projections of the objects on that line are computed using the cosine law.
Theorem(Cosine Law)(Figure 2)

db,i = d 2a,i + d 2a,b - 2xi da,b (1)

In the above equations, dij is a shorthand for the distance D(Oi, Oj) (for i, j = 1 . . .N . Notice that the computation of xi only needs the distances between objects, which are given.)
Solution of Cosine Law's equation for xi
From the Pythagorean theorem in the two triangles Oa EOi and ObEOi, the equation of the Cosine Law can be solved for xi, the first coordinate of object Oi:

xi = da,i 2 + da,b 2 - d 2b,i (2)

2da,b
Observe that, thanks to Eq.(2), we can map objects into points on a line, preserving some of the distance information.
The vertical axis is chosen to be orthogonal to the horizontal axis (Figure 3). In FastMap algorithm, the pairs of objects which define axes are automatically selected by the system, while they are selected by users in our method. Therefore users can view and retrieve documents from their own point of view.

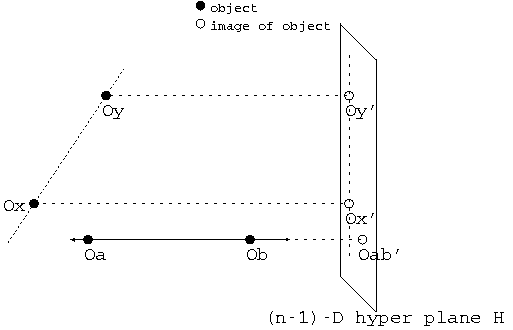

To put the algorithm more concretely, first, a pair of objects, Oa and Ob, is chosen. It is used for the horizontal axis. Every object is orthogonally projected onto the line Oa Ob. The position on the line segment of each object is regarded as the horizontal attribute. Now, the hyper plane H, which is perpendicular to the line segment Oa Ob, is introduced (See Figure 3). Let the orthogonal projection of the line segment Oa Ob on H be O'ab in figure 3. Objects other than Oa and Ob are also projected onto H. For example, the object Ox is projected into O'x. Then, another pair of objects, Ox and Oy , is chosen for the vertical axis. Let the projection of them to HO'x and HO'y. The line segment O'xO'y is orthogonal to the horizontal axis. Eventually, we obtain the two line segments, the line segments Oa Ob and O'xO'y as two axes of the interface (Figure 1), and they are orthogonal each other.
As a matter of fact, the line segments Oa Ob and OxOy are not orthogonal (Figure 3) in the N -D space. So, there is an alternative plan to make the interface, judging from the intuition. It is the plan to present the interface whose axes are not crossing at right angle(Figure 4). In the figure, the angle cos` can be computed from the equation of the inner product.

cos = Oa ObOx Oy (2)

|Oa Ob||Ox Oy|

2.2. Retrieving the Documents

We an arrange object vectors onto the interface, and the spatial relationships between the query object and "yardstic objects" are interpreted as the definition of the plane, or as the search conditions. Using our algorithm, the projected object vectors are compared to the condition specified by the user (Figure 1). The object vectors matched to the target area specified by the user are returned to the user as the result of the retrieval.
In general retrieval of vector model, there are two possible choices of policy to select the objects. We compute the dissimilarity of the objects by distance function d.

1. Range Policy

given a query object Q, selsect all indexed objects Oj s.t. d(Q; Oj) =< r.
2. k nearest neighbours (k-NN) Policy
given a query object Q and integer k >= 1, select the k indexed objects which have the shortest distance from Q.
To add to the policy based on distance, we should consider the topological factor of retrieval conditions. This factor of conditions is conjunctive and narrows the candidates for retrieval. For example, in such a case as the user specifies like Figure1, the result should not include the objects on the left of Oa .

3. Experiments

We did an experiment on our method using 116 documents. We report the result of the experiment below.

3.1. Process

1.
The document set of 116 master theses of NAIST is the object of our experiment.
2.
Stemming the words of the each document, we eliminate the stop words which are included in the stop word list.
3.
Couting the occurrence of the each variation of the words, the document-word matrix is constructed. The size of matrix is 126 x 1640.
4.
Perform the SVD of the document-word matrix.
5.
Applying our method to the vectors of documents and query, we obtain 2-D arrangemant.
6.
Compare the obtained arrangemant and the retrieval conditions specified by the user. The objects which satisfies the conditions are returned to the user.

3.2. Results

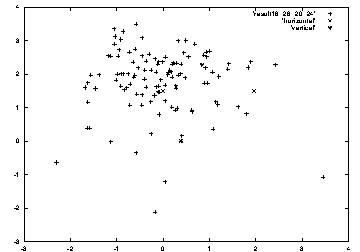

The example of user interface is shown in Figure 5. In the figure, the pair of horizontal yardstick objects are denoted by "x", the pair of vertical yardstick objects are denoted by"*", and the other objects are denoted by "+". These yardstick objects and two orthogonal axes are standard against which users specify the query object vector.

4. Conclusion

The result of our experiments shows that the interface proposed in this paper has the efficient power of discriminating the object vectors. Using the interface like our prototype system, users can specify the retrieval conditions even if they don't know the scheme of the field very well.

Acknowledgement

We are indebted to the members of Uemura Laboratory for their constructive discussions.
